Applications
Wound healing assays
Migration assays
2D invasion assays
Co-cultivation of cells
Specifications
Number of wells | 2 |
Outer dimensions | 8.4 x 8.4 x 5 mm (w x l x h) |
Volume per well | 70 μl |
Growth area per well | 0.22 cm2 |
Coating area per well | 0.82 cm2 |
Width of cell free gap | 500 μm +/- 100 μm |
Material | Biocompatible silicone |
Bottom | No bottom - sticky underside |
Endothelial cells cultured in a μ-Dish 35 mm, high with a Culture-Insert 2 Well. Image by Derek Sung, University of Pennsylvania School of Medicine, USA.
Technical Features

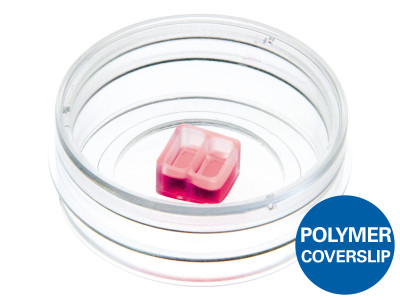

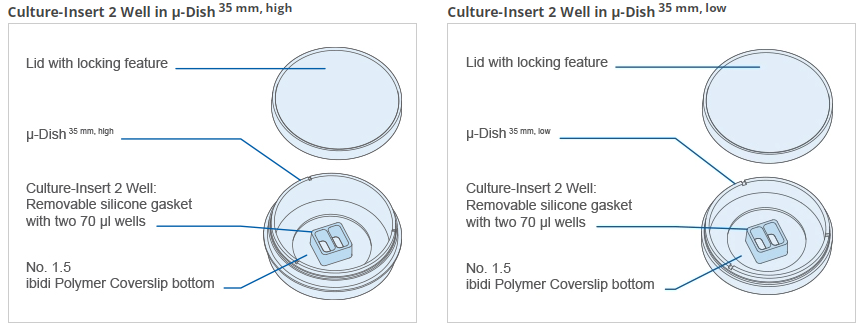

Culture-Insert 2 Well, pre-inserted into:
μ-Dish 35 mm, high (imaging dish with standard 12 mm walls), or
μ-Dish 35 mm, low (imaging dish with low 7 mm walls)
Biocompatible silicone material with adhesive underside
Ready-to-use: the Culture-Insert is already placed in the μ-Dish 35 mm, high or μ-Dish 35 mm, low

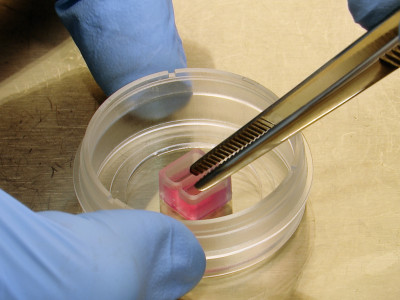

Clean surface after insert removal without remaining material
Find full specifications and technical details here: μ-Dish 35 mm, high | μ-Dish 35 mm, low

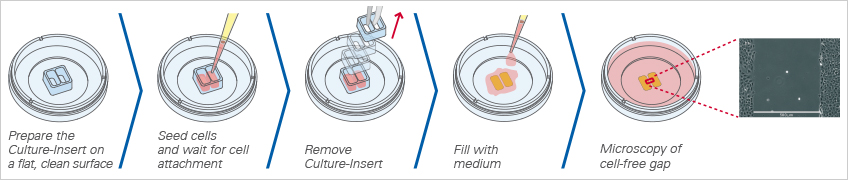

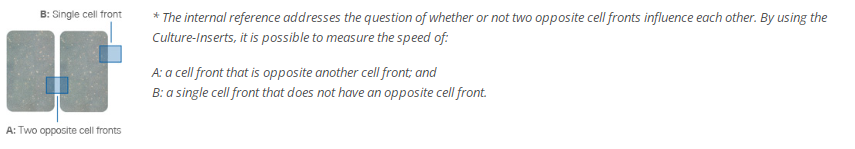

Principle for Wound Healing and Migration Assays
